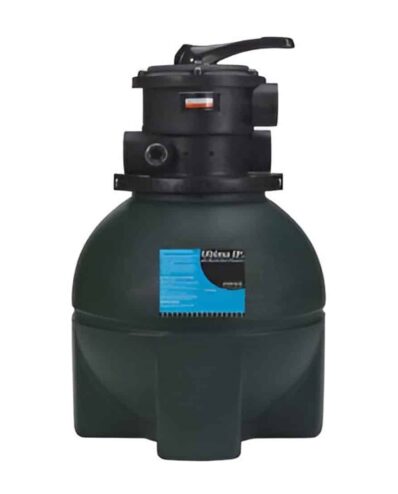

Optimize Your Pond with Aqua UV Ultima II Filters
Keeping your pond clean and healthy isn’t just a matter of looks—it’s essential for the well-being of fish and aquatic plants. One of the most effective solutions is the Aqua UV Ultima II Filter system. These high-performance pond filters combine biological and mechanical filtration to keep your pond crystal clear.
Why Choose Aqua UV Ultima II Pond Filters?
The Aqua Ultima II Filters are built to meet the demands of koi ponds, water gardens, and large-scale aquatic environments. They offer unmatched clarity and ease of use.
Advanced Bio-Tube Technology
Unlike standard filters, the patented Bio-Tube Media in the Ultima II prevents clumping. This design improves water flow and supports beneficial bacteria growth. As a result, your pond stays balanced and your aquatic life thrives.
Easy Maintenance
Backwashing is simple and effective. You won’t need to remove or clean media by hand. With just a few turns of a valve, you can clean the filter and get back to enjoying your pond.
Designed for Versatility
Aqua Ultima II Filters are available in various sizes. Whether you have a 500-gallon pond or a 60,000-gallon koi system, there’s a filter that fits your setup. Additionally, they work seamlessly with pond pumps of all sizes.

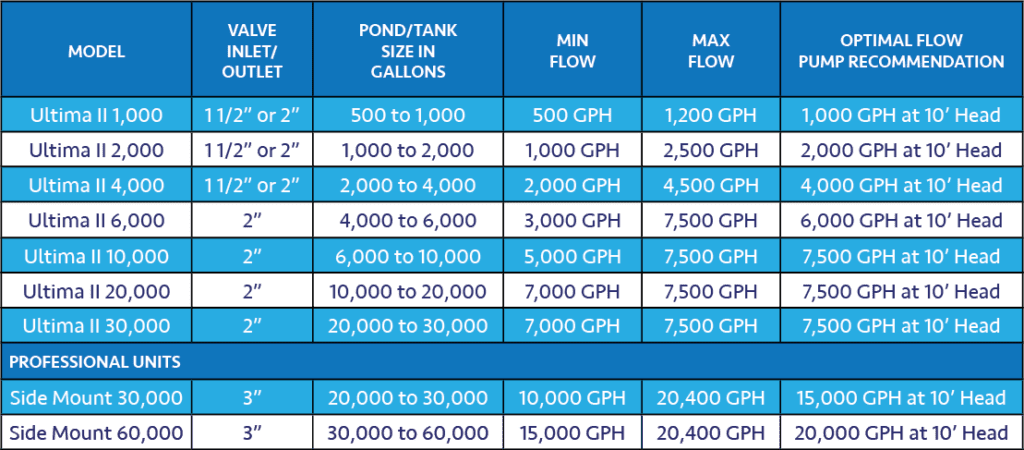

Filter Sizing Chart
Aqua UV Ultima II 1,000 gallon filter
Valve Inlet/Outlet Sizing: 1 - 1/2" or 2"
To support aquatic life in bodies of water
from 500 to 1,000 gallons.
Optimal Flow Rate Pump Recommendation:
Min Flow Rate: 500 GPH
Max Flow Rate: 1,000 GPH
Aqua UV Ultima II 2,000 gallon filter
Valve Inlet/Outlet Sizing: 1 - 1/2" or 2"
To support aquatic life in bodies of water
from 1,000 to 2,000 gallons.
Optimal Flow Rate Pump Recommendation:
Min Flow Rate: 1,000 GPH
Max Flow Rate: 2,500 GPH
Aqua UV Ultima II 4,000 gallon filter
Valve Inlet/Outlet Sizing: 1 - 1/2" or 2"
To support aquatic life in bodies of water
from 2,000 to 4,000 gallons.
Optimal Flow Rate Pump Recommendation:
Min Flow Rate: 2,000 GPH
Max Flow Rate: 4,500 GPH
Aqua UV Ultima II 6,000 gallon filter
Valve Inlet/Outlet Sizing: 2"
To support aquatic life in bodies of water
from 4,000 to 6,000 gallons.
Optimal Flow Rate Pump Recommendation:
Min Flow Rate: 3,000 GPH
Max Flow Rate: 7,500 GPH
Aqua UV Ultima II 10,000 gallon filter
Valve Inlet/Outlet Sizing: 2"
To support aquatic life in bodies of water
from 6,000 to 10,000 gallons.
Optimal Flow Rate Pump Recommendation:
Min Flow Rate: 5,000 GPH
Max Flow Rate: 7,500 GPH
Aqua UV Ultima II 20,000 gallon filter
Valve Inlet/Outlet Sizing: 2"
To support aquatic life in bodies of water
from 10,000 to 20,000 gallons.
Optimal Flow Rate Pump Recommendation:
Min Flow Rate: 7,000 GPH
Max Flow Rate: 7,500 GPH
Aqua UV Ultima II 30,000 Top Mount filter
Valve Inlet/Outlet Sizing: 2"
To support aquatic life in bodies of water
from 20,000 to 30,000 gallons.
Optimal Flow Rate Pump Recommendation:
Min Flow Rate: 7,000 GPH
Max Flow Rate: 7,500 GPH
Aqua UV Ultima II 30,000 Side Mount filter
Valve Inlet/Outlet Sizing: 3"
To support aquatic life in bodies of water
from 20,000 to 30,000 gallons.
Optimal Flow Rate Pump Recommendation:
Min Flow Rate: 10,000 GPH
Max Flow Rate: 20,400 GPH
Aqua UV Ultima II 60,000 Side Mount filter
Valve Inlet/Outlet Sizing: 3"
To support aquatic life in bodies of water
from 30,000 to 60,000 gallons.
Optimal Flow Rate Pump Recommendation:
Min Flow Rate: 15,000 GPH
Max Flow Rate: 20,400 GPH
The Aqua Ultima II Filters are known in the industry as the easiest filter to maintain, the Ultima II Filters take just 5 minutes a week to backwash. Gone are the days of dismantling your filter and scrubbing pads. The Ultima II Bio-mechanical filter traps and converts fish waste, ammonia, into a substance that is harmless to fish called nitrates. Nitrates can then be used by the plants in the pond. If Ammonia is left untreated, it can cause serious harm to the Fish. The Ultima II bio-mechanical filter creates an ecosystem for your pond, replicating the natural, beneficial bacteria found in ponds and lakes, ensuring a healthy environment for your fish. How is the Ultima II Different? The key is the patented media which is exclusive to Aqua Ultraviolet. The Aqua Ultraviolet media traps solid waste while also providing a protected growth surface for beneficial bacteria. This biofilm is what converts the ammonia to harmless compounds. Because of the innovative design, the filter media has the most biofilm surface area of any in the industry. One square foot of the Aqua UV filter media has 800 cubic feet of surface area! This media never needs to be replaced and requires no maintenance, just backwash weekly. The Ultima II filters are sturdy, durable units made from heavy-duty material. The Ultima can even be buried up to the valve assembly for concealment if desired.
Match Your Filter with the Right Pond Pump
To get the best results, your pond filter must be paired with a properly sized pond pump. Choosing the correct pump ensures adequate flow rate and head pressure, which are both critical for effective filtration.
Find the Ideal Flow Rate
Each Ultima II Filter model has a recommended flow range. For example, the Aqua Ultima II 10,000 Filter performs best with a pump that moves 5,000 to 7,500 gallons per hour at 10 feet of head pressure. Always check the specs for your specific filter.
Improve Energy Efficiency
Opt for an energy-efficient pond pump. Not only will this save you money on electricity, but it will also reduce wear on your system. As a result, your setup will run longer and more efficiently.
Boost Your Water Quality
When your filter and pump are working in harmony, the water quality improves dramatically. Fish stay healthy, algae is reduced, and your pond becomes easier to maintain.
